APEX/ Creating Phyllotactic Patterns from Seed to Flower

The Stack-and-Drag Model creates phyllotactic patterns from seed to flower. What does that mean?
On a cylindrical surface, spheres are stacked one by one. The stacking direction is upwards from two initial, touching spheres, representing cotyledons. New spheres become smaller according to an S-graph. After the last stem unit (which ordinal number is preset), spheres close the surface in a transition vertical/horizontal: the apical hemisphere. (The number of spheres fitting on this top is not preset.)
We distinguish unit growth (green) and unit translations or receptacle growth (blue for longitudinal and red for radial). The 'green graph', which shows the ratio r(unit) / r(stem), affects phyllotaxis dramatically. The blue and red graphs define axial and radial translations, and they are not of topological importance.
Besides the unit growth curve, pattern determining parameters are:
exp(ansion) - makes spheres compressible to repulsive,
sens(itivity) - decelerates ('smoothens') the structure, or accelerates it (makes it 'nervous'),
canal(ization) - acts apon Buvat's 'anneau initial'.
S-curve parameters are: base (minimum radius), hlife (halflife) and const (gradient).

Apex is not a physiologic simulator. With this piece of software, one is able to create metastructures, which relate with familiar plant forms - but do not imitate them. Structures and the shape of units can easily be edited.
While Fibonacci numbers are the normal output, Apex does not necessarily produce them, nor the 'Golden Angle'. Sometimes, deviations like the Lucas series or a lower accessory sequence may arise.

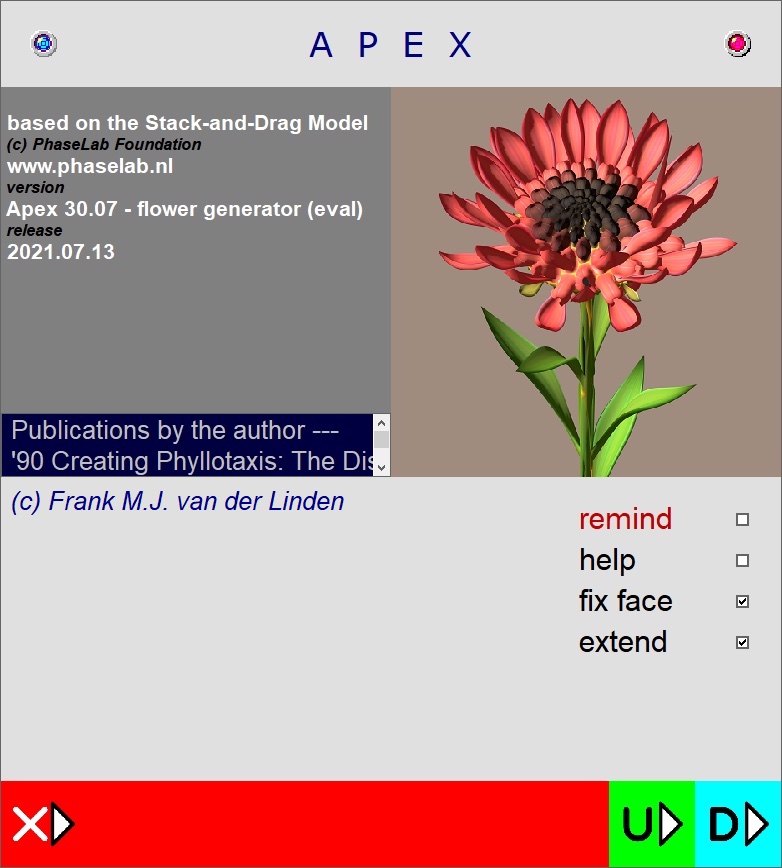

You can download ApexE (Evaluation version) for Windows free of charge.

YOU NEED TO SET THE DECIMAL POINT AND THE THOUSANDS-SEPARATOR COMMA IN YOUR WINDOWS SETTINGS. OTHERWISE, APEX REFUSES TO START UP.
If you encounter problems, please contact us.
home

phyllotaxis
apex
more
basics
history
articles
gallery
go!
Go to previous page Go to next page

For the free evaluation version ApexE, type your name and email address, and press the Download button.

You will receive the latest version.

ApexE is fully functional, but data exchange is limited.



For instructions, click

>Apex ReadMe (HTML)

or >Apex ReadMe (PDF)
Hit the introduction menu (right).
